X-TENDED Reality™ Overview

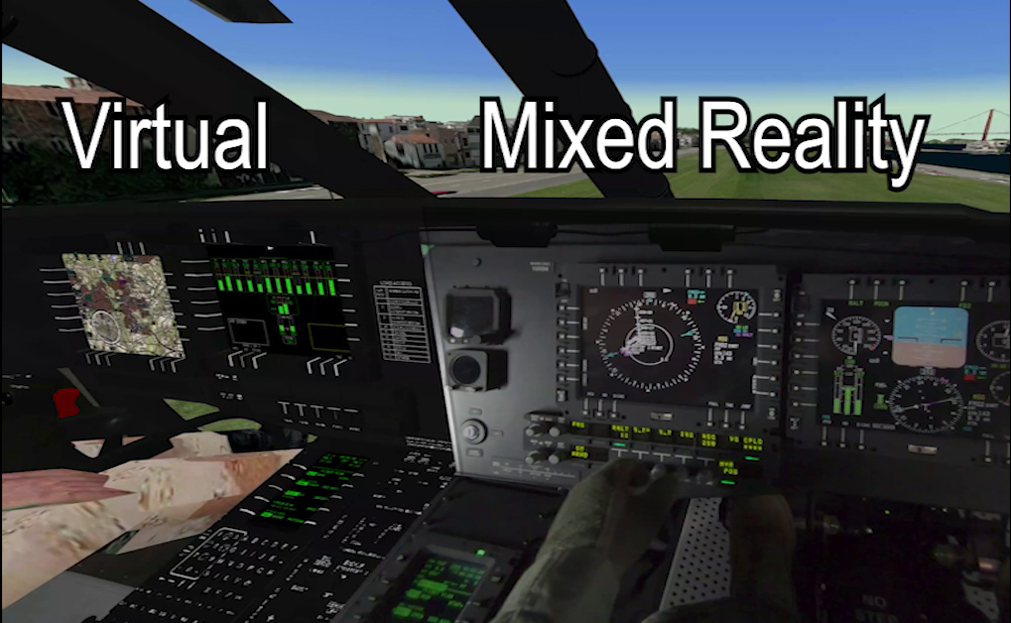

CATI X-TENDED Reality™ is the perfect merging of real and virtual worlds to produce new environments
and visualizations, where physical world and virtual world co-exist and interact in real time.
CATI X-IG® High Fidelity Image Generator display technologies are used to facility the interaction
between the user and the extended reality application.
See X-TENDED Reality Video
For over twenty-five years, CATI X-IG® has been providing unparalleled rendering performance through
advanced software algorithms and optimizations. Now CATI X-TENDED Reality™ brings this
high-performance image generator technology to a Head Mounted Display (HMD) providing a fully
immersive training environment.
CATI’s X-IG® image generator is a Commercial Off-the-Shelf (COTS) product for PC-based visual
simulations. X-IG® is specifically designed around industry standard OpenGL®, a high performance
graphics Application Programming Interface (API), and OpenFlight®, the 3D standard format for the visual
simulation industry.
X-IG® is designed to render real-time Out-the-Window (OTW) and sensor scenes for training and
simulation, creating real-world high resolution photorealistic visual and sensor scenes. X-IG® additionally
includes special effects which complement the image generator enhancing scenes.
Currently in use with various military, civilian, and commercial customers, X-IG® provides high-fidelity
visualization for flight simulators and a variety of other training systems. Advanced data compression,
optimization, and paging algorithms allow X-IG® to render high-density, geo-specific databases of
unlimited coverage.
Supported Devices
Headsets
♦ Varjo XR3 & Varjo XR4 Series
♦ Oculus Rift
♦ HTC Vive
♦ Vison Products VR/MR - SA-62, SA-83, SA-92 & SA-147
Headtrackers
♦ HTC SteamVR Trackers
♦ Intersense Professional Tracking Systems
♦ Polhemus Motion Trackers
♦ Ascension laserBIRD
X-TENDED Reality™ Performance
♦ Renderings of 500,000 fully-textured, shaded
and anti-aliased polygons per channel, peak performance of over 4 million polygons at 90 Hz
♦ Renderings of 200,000 light points in day/night/dusk at 90 Hz
♦ Database paging and texture compression
for uninterrupted training through high resolution geo-specific databases
♦ Anisotropic texture filtering increasing texture resolution
♦ Multiple light sources (ambient light, spotlights,
steerable search lights, landing lights, etc.)
♦ Dynamic scene management
♦ Real-time texture animation
♦ Unlimited levels of occulting
Export Control
♦ X-TENDED Reality™ & X-IG® are approved for export Civilian and Commercial X-IG®
sales are subject to the jurisdiction of the U.S. Department of Commerce
in accordance with the Export Administration Regulations as EAR-99.

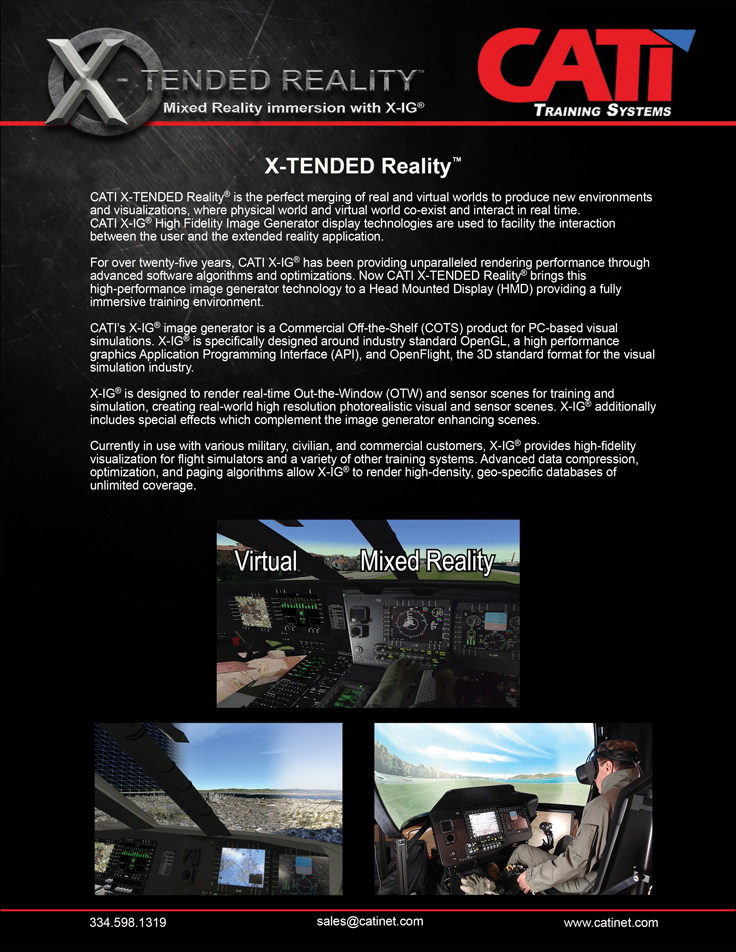

Specification Download
